Air75 Brushless Whoop Quadcopter | Racing | ELRS 2.4G | 5In1

In this millisecond decision victory era, with galloping indulgence and challenging speed, seize your championship with Air75! Prepare for an explosive upgrade, now upgraded and more impressive than the Meteor Series. Weighing a mere lighter 21g yet boasts next-level performance. Equipped with Air Canopy, Air75 Frame, Air Brushless Flight Controller (5IN1), and the new optional LAVA 1S 450mAh 75C Battery enhances the ultra-lightweight feature. It reigns as the Ultralight King and Reaction Giant!

Bullet Points

• For a smooth and elegant free flight experience, the Air75 features the Gemfan 40mm 2-Blade Props and 0802SE | 23000KV Motor, allowing for timely responses and precise follow-up actions for incredible speed bursts and agile steering.

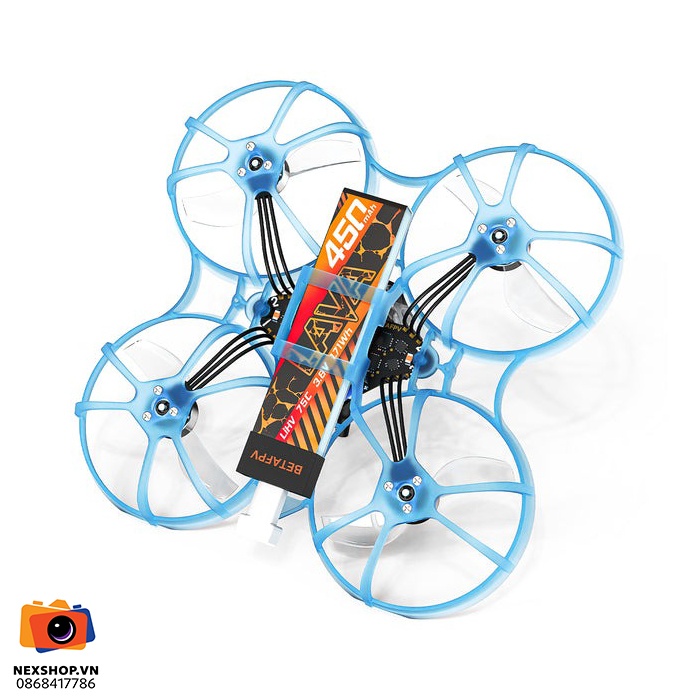

• Discover the Air75, accompanied by the Z-Folding LAVA 1S 450mAh 75C Battery, enabling the ultimate lightweight flight experience. Take to the skies with unparalleled agility and weightlessness.
• Express your unique style with various part options. From 75mm frames to canopies and propellers, offering pilots a diverse selection of captivating colors. Combine with BETAFPV waterslide decals to effortlessly infuse your whoop drones with a personalized.


Specifications


• Item: Air75 Brushless Whoop Quadcopter

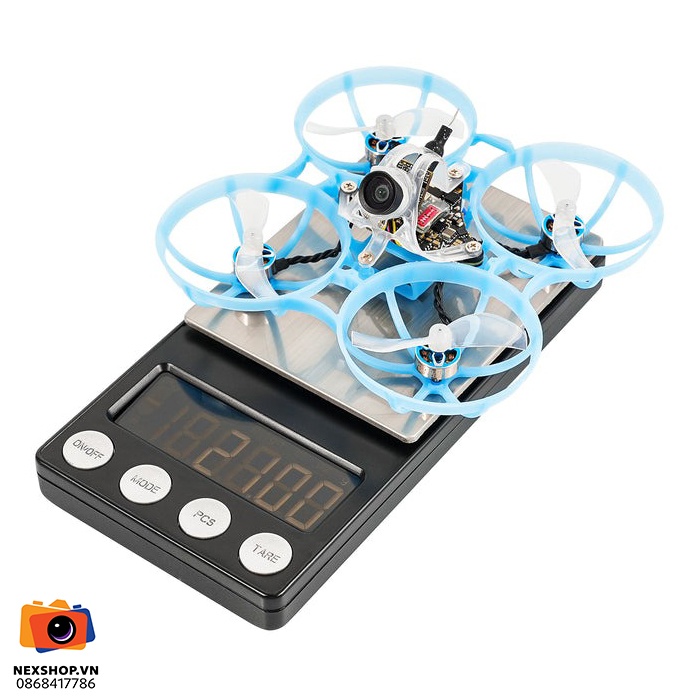

• Weight: 21g
• Wheelbase: 75mm
• Frame: Air75 Frame
• Canopy: Air Canopy
• FC & ESC: Air Brushless Flight Controller (5IN1 Version)
• VTX: Onboard 5.8G 25mw - 400mw VTX
• Camera: C03 Camera
• Motor: 0802SE | 23000KV
• Props:  Gemfan 40mm 2-Blade
• Battery Connector: BT2.0 U Cable Pigtail
• Recommend Battery: LAVA 1S 450mAh 75C
• Flight Time (4.35v-3.3v): 6.5min
• RX Version: Onboard Serial ELRS 2.4G

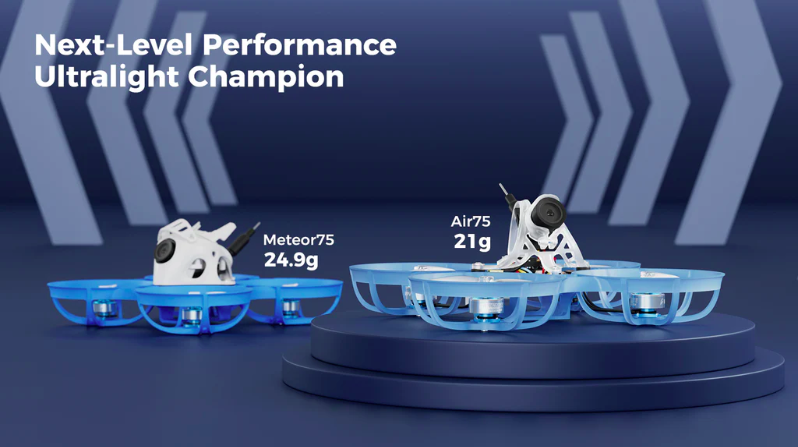

Comparison Air75 & Meteor75

	Air75	Meteor75
Weight	21.0g	24.9g
Wheelbase	75mm	75mm
Frame	Air75 Frame	Meteor75 Micro Frame
Canopy	Air Canopy	Canopy for Micro Camera 2022
FC & ESC	Air Brushless Flight Controller (5IN1 Version)	F4 1S 5A FC (Serial ELRS 2.4G) F4 1S 5A FC (SPI Frsky)
VTX	Onboard 5.8G 25mw - 400mw VTX	M03 VTX
Camera	C03 Camera	C03 Camera
Motor	0802SE | 23000KV	0802SE | 19500KV
Props	Gemfan 40mm 2-Blade	Gemfan 40mm 2-Blade
Battery Connector	BT2.0 U Cable Pigtail	BT2.0
Recommend Battery	LAVA 1S 450mAh 75C	BT2.0 450mAh 30C LAVA 1S 450mAh 75C
Flight Time 4.35v-3.3v	6.5min	4.5min (Freestyle) / 6min
RX Version	Onboard Serial ELRS 2.4G	ELRS/Frsky/TBS

Note: The Air75 is crafted for advanced pilots aiming to push the boundaries of FPV agility and racing flight performance. For newcomers to FPV or those flying for entertainment, the Meteor75 Pro is a better choice. It offers enhanced durability, requires no welding, and provides a more beginner-friendly experience.

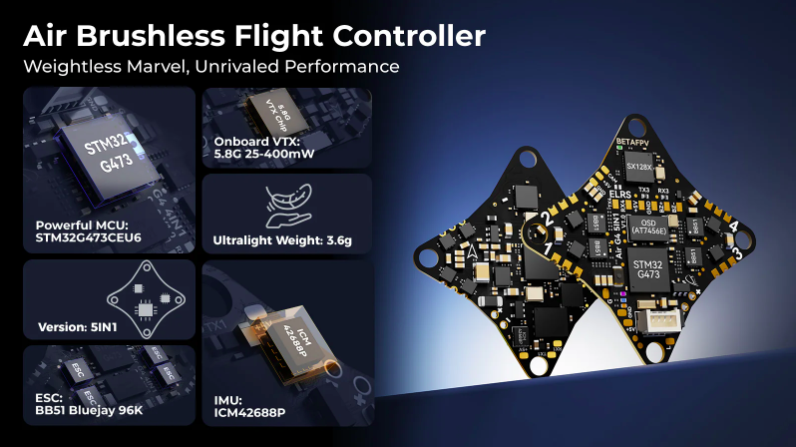

Flight Controller & ESC

The Air75 is now equipped with the Air Brushless Flight Controller (5IN1), featuring the advanced G473 processor, which provides superior computing power and lightning-fast response times—a significant upgrade over the F411 used in the Meteor75. Weighing just 3.6g, it integrates FC, ESC, OSD, VTX, and RX into a compact design, simplifying setup and maintenance while striking the perfect balance between performance and lightness. Powered by the industry-leading ICM42688P gyroscope and a custom micro-sized OSD chip, the Air75 delivers smoother, more responsive control. With multiple UART ports for flexible function expansion, the Air75 is designed for seamless integration into both racing and freestyle FPV, offering unmatched precision and fingertip control.

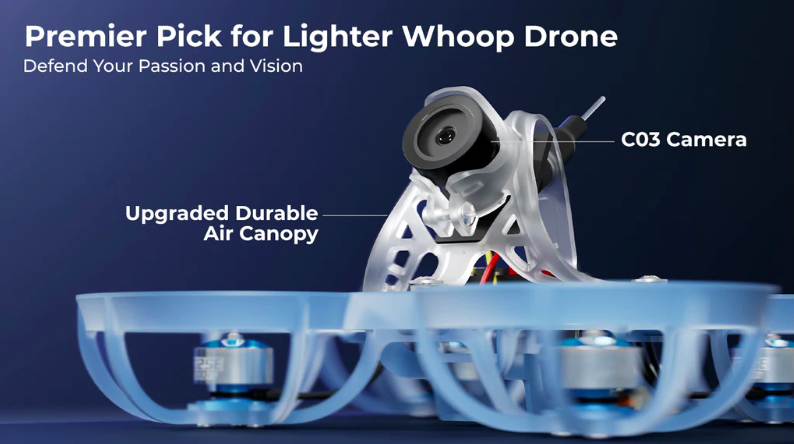

Upgraded Air Canopy

Experience high-quality, clear, and sharper images with the lightweight C03 FPV Micro Camera, weighing just 1.45g. We've redesigned the Air Canopy structure to be more flexible, impact-resistant, and durable. The improved bending effect enhances flexibility, reduces the chances of breakage, and greatly enhances explosion resistance for easier installation. Effortlessly accommodates an assortment of Micro and Nano Analog cameras. Supporting angle adjustment from 25° to 50°. With it, Air75 can chase the limit of racing victory worry less.

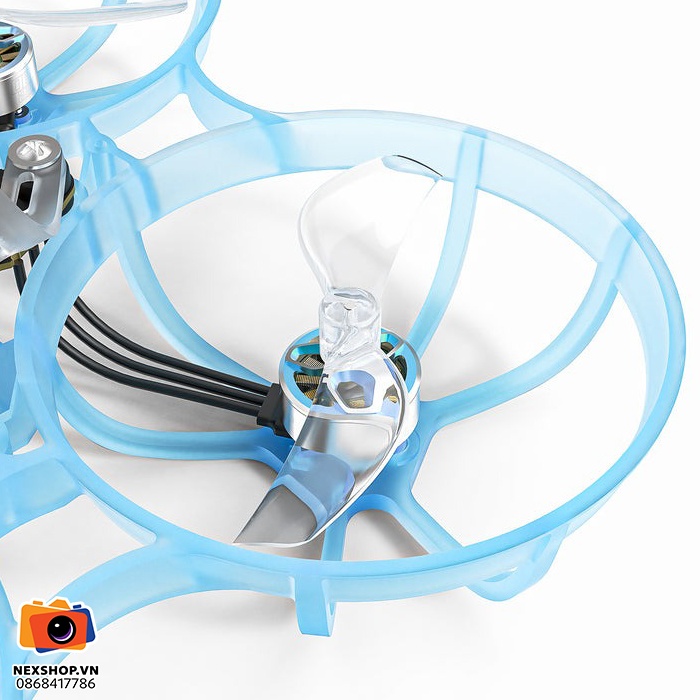

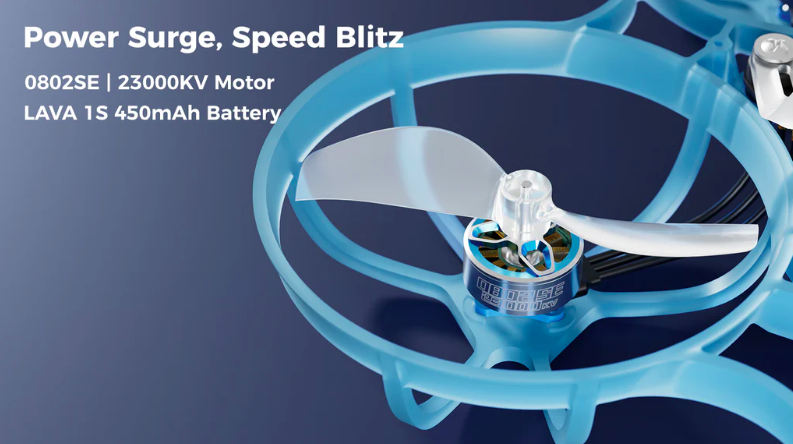

Propulsion System

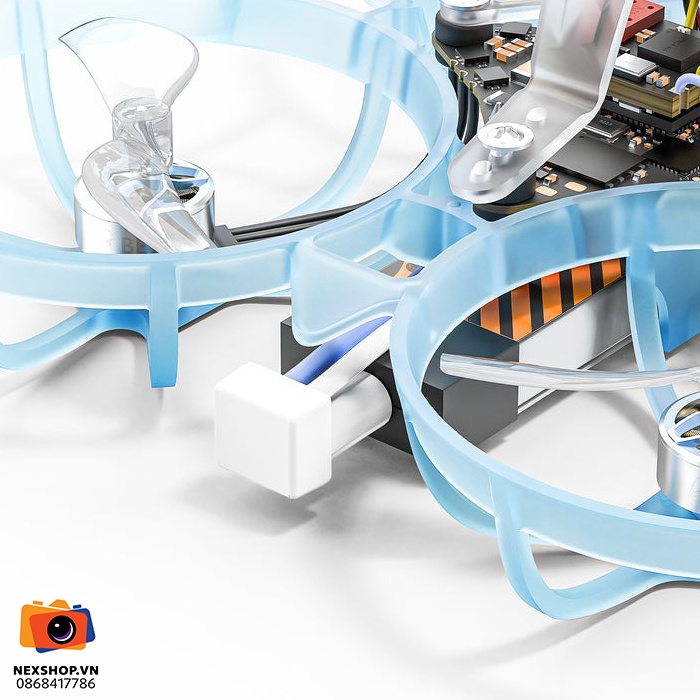

For a smooth and elegant free flight experience, the Air75 features the Gemfan 40mm 2-Blade Props, a larger pitch tip of the props, quick response, and crisp action, and0802SE | 23000KV Motor, allowing for timely responses and precise follow-up actions for incredible speed bursts and agile steering. Equipped with the ultralight LAVA 1S 450mAh 75C Battery that features the groundbreaking Z-Folding Process for the Air75 more concentrated center gravity, crisper response, greater acceleration, and enhanced maneuverability.

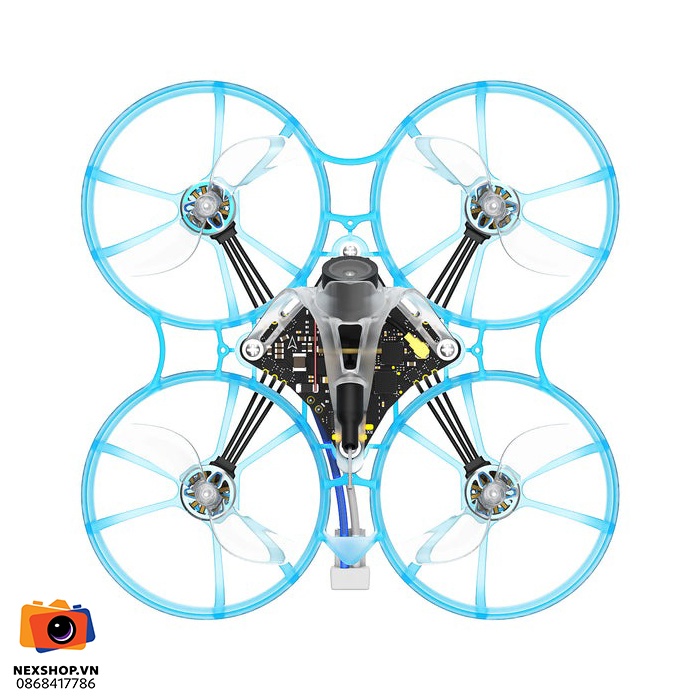

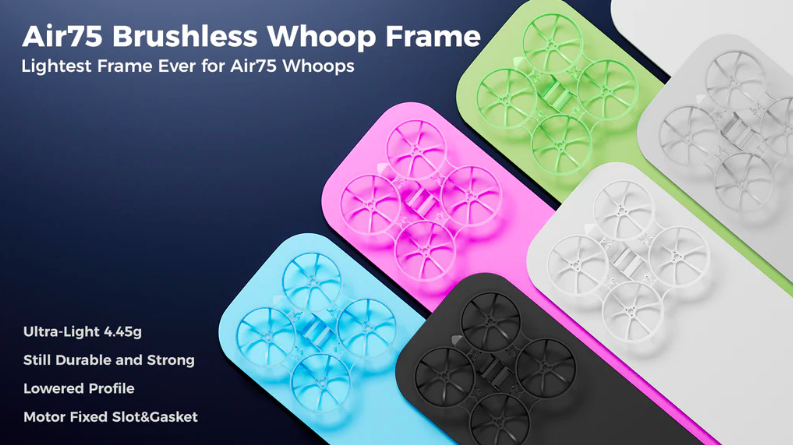

Air75 Frame

To enhance the flying experience, DIY enthusiasts have diligently worked on reducing the weight of the 75mm whoop drones, especially frames for an ultra-light structure. We upgraded the Meteor75 Micro Frame to the Air75 Frame, which achieves a remarkable weight lighter from 5.68g to 4.45g. It maintains exceptional strength and durability while introducing a new motor fixed slot, and optimizing a low-profile design. Having 8 color choices, it indisputably emerges as the top topgallant choice for pilots seeking an unparalleled ultra-light Sub20g 75mm 1S Whoop drone and personality.

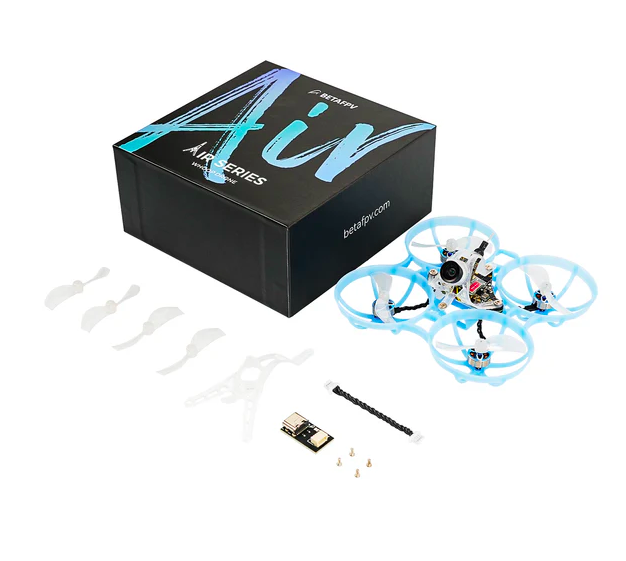

Package

• 1 * Air75 Brushless Whoop Quadcopter
• 1 * Air Canopy
• 4 * Gemfan 40mm 2-Blade Propellers

• 1 * Pack of Screws
• 1 * 4Pin Adapter Cable
• 1 * USB Type-C Adapter Board
