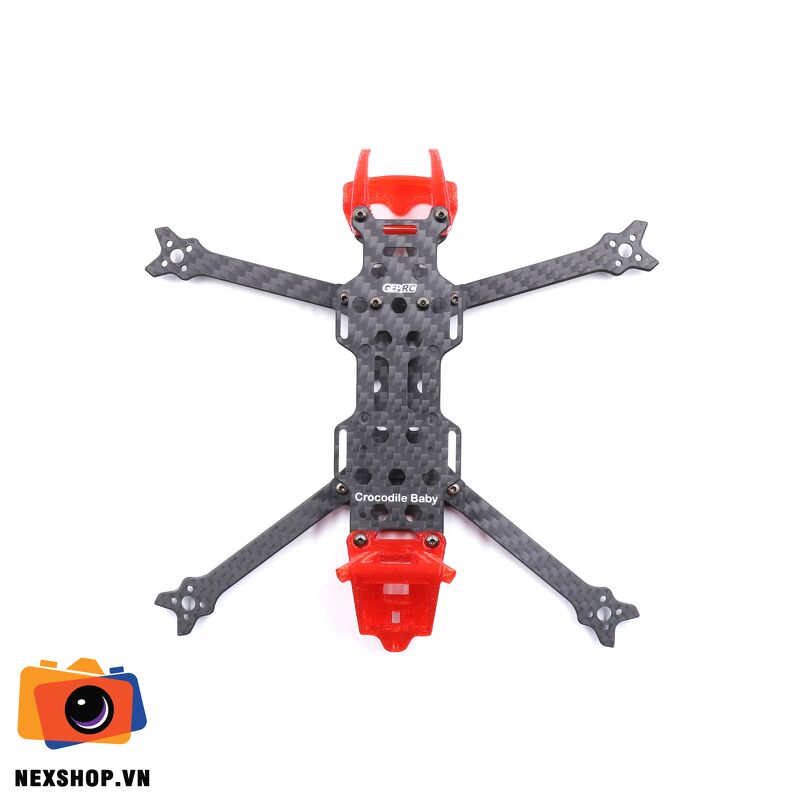

GEPRC Frame Crocodile Baby 4"

Summary:

GEP-CB4 Frame is specially designed for Micro Long Range Flight, Maximum support 4 inch propeller.GEP-CB4 Frame is perfectly designed by GEPRC TEAM.Adopting the newly upgraded design of aerodynamics principle.The Light-weight design,The solid and durable structure,The full 3K carbon plates combine with delicate 3D print parts. Battery mounted above the drone,It can be stably and reliably flying and the Center of gravity extreme balanced,The sense of “Easy To Control “are literally breath-taking.With the New producing GEPRC 6S 3000mAh battery,It can easily achieve 28 minutes flight time and bring an incredible and wonderful experience.The flight time and clarity are incredible!

Specifications：

• Brand:GEPRC
• Name:GEP-CB4
• Motor to Motor:174mm
• Camera position size:20mm
• Props Size:4inch
• Thickness of arms plate:2.5mm
• Thickness of Bottom plate:2mm
• Thickness of Top plate:1.5mm

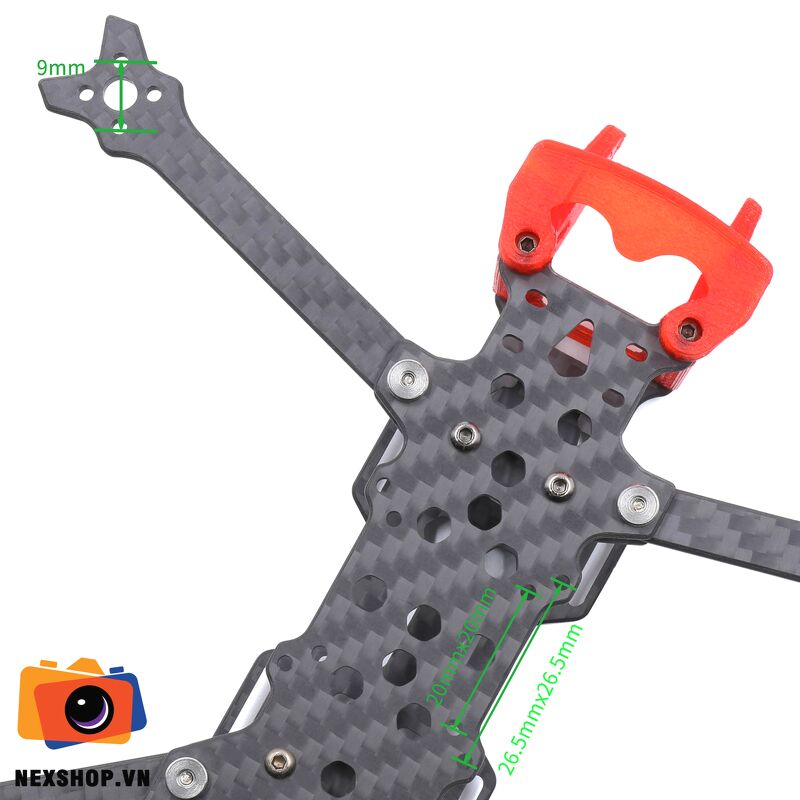

• Flight control hole distance:20x20mmAnd26.5×26.5mm
• The hole position of motor:9mm

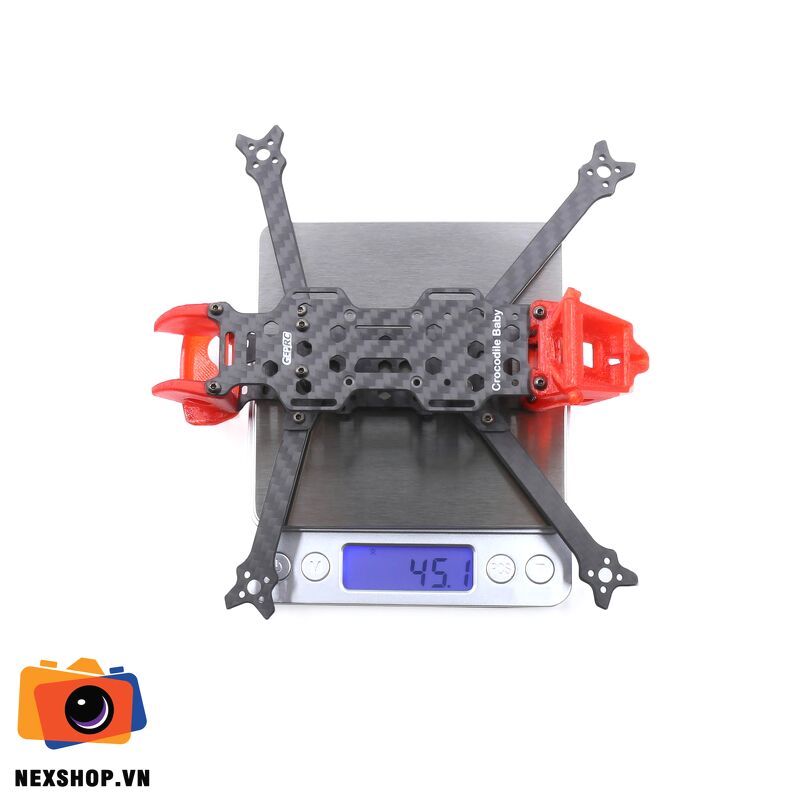

• Weight:45g

Recommended：

• Flight Controller:F4/F7
• Motors:1206/1404
• ESC:15A-30A

Feature:

• Full 3K carbon plates,The solid and durable structure
• Specially designed for Micro Long Range Flight,The frame tilts forward,The wide battery’s position
• The Mount of camera using 3D printing structure,It can absorbing most of vibration and Reducing Jelly
• Support Various installation way of flight control’s hole spacing
• The Edge of the motor base is Specially Designed to protect the motor in case of crash
• The GPS installation position is reserved inside frame,The rational layout bring perfect dimension deduct space aesthetics

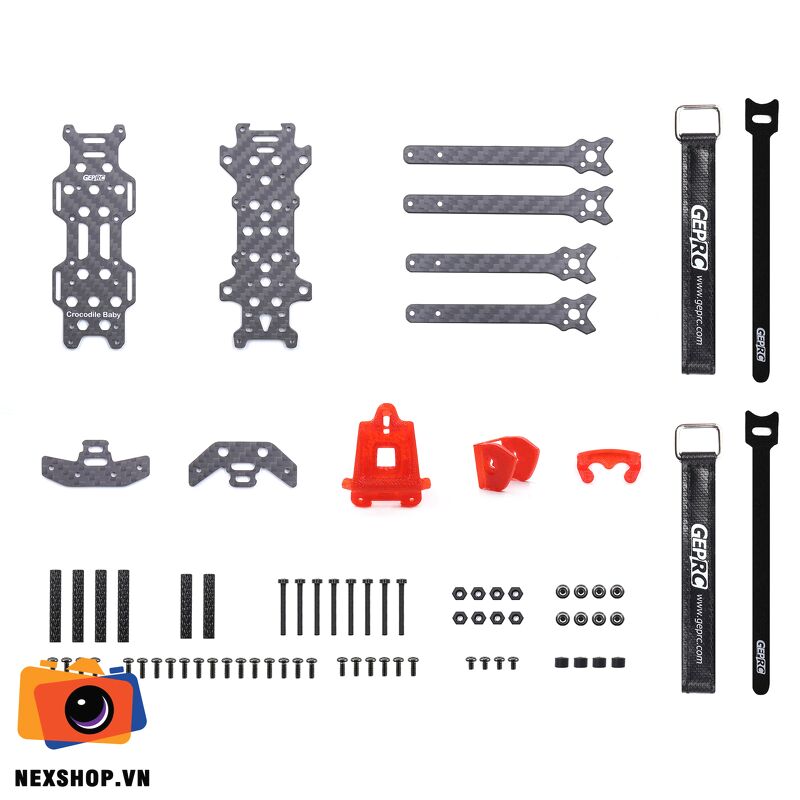

GEP-CB4 Include：

• 1 x 2.0mm Bottom plate
• 1 x 1.5mm Top plate
• 2 x 2.5mm Front plate
• 2 x 2.5mm Back Plate
• 1 x 2.0mm Front Splint
• 1 x 2.0mm Back Splint
• 4 x（M2*25) Aluminum posts
• 2 x（M2*20.5) Aluminum posts
• 6 x（M2*6) Round head screws
• 14 x（M2*8) Round head screws
• 4 x（M2*10) Round head screws
• 4 x（M2*4) Round head screws
• 8 x（M2) Push block nuts
• 8 x（M2*2) Plastic nuts
• 8 x（M2*18) Plastic screws
• 1 x 3D print crush barrier of camera
• 1 x Fixing part of Antenna Red
• 1 x Fixing part of TBS Antenna Red
• 2 x Batteries pad
• 8 x Landing shock absorption pad
• 2 x Protective Tube of Antenna
• 4 x Rubber Shock Pad
• 2 x (M15*180mm) Batteries strap
• 2 x (M15*180mm) Batteries strap
• 1 x (1.5mm) L shape wrench
• 1 x Plastic matching plate
