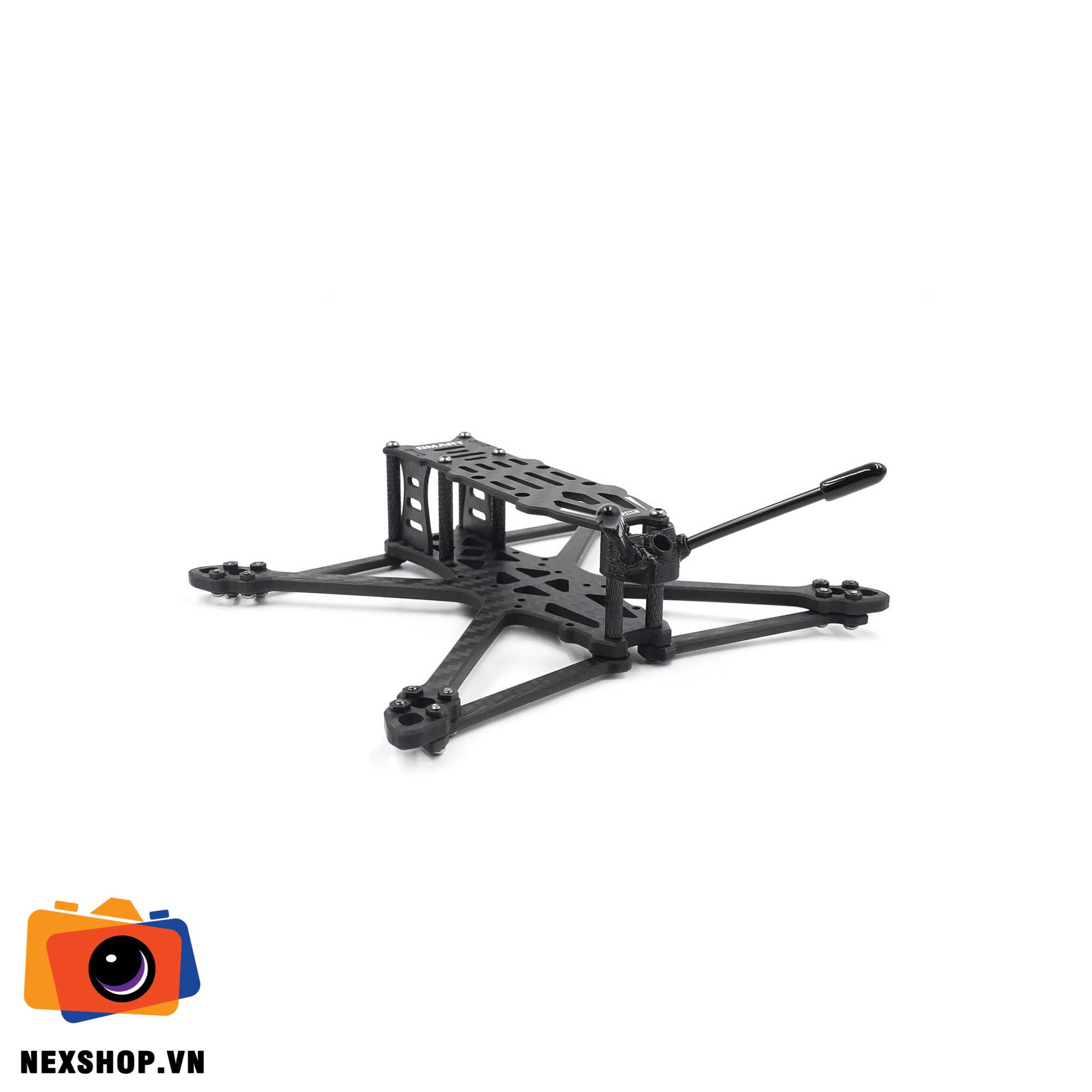

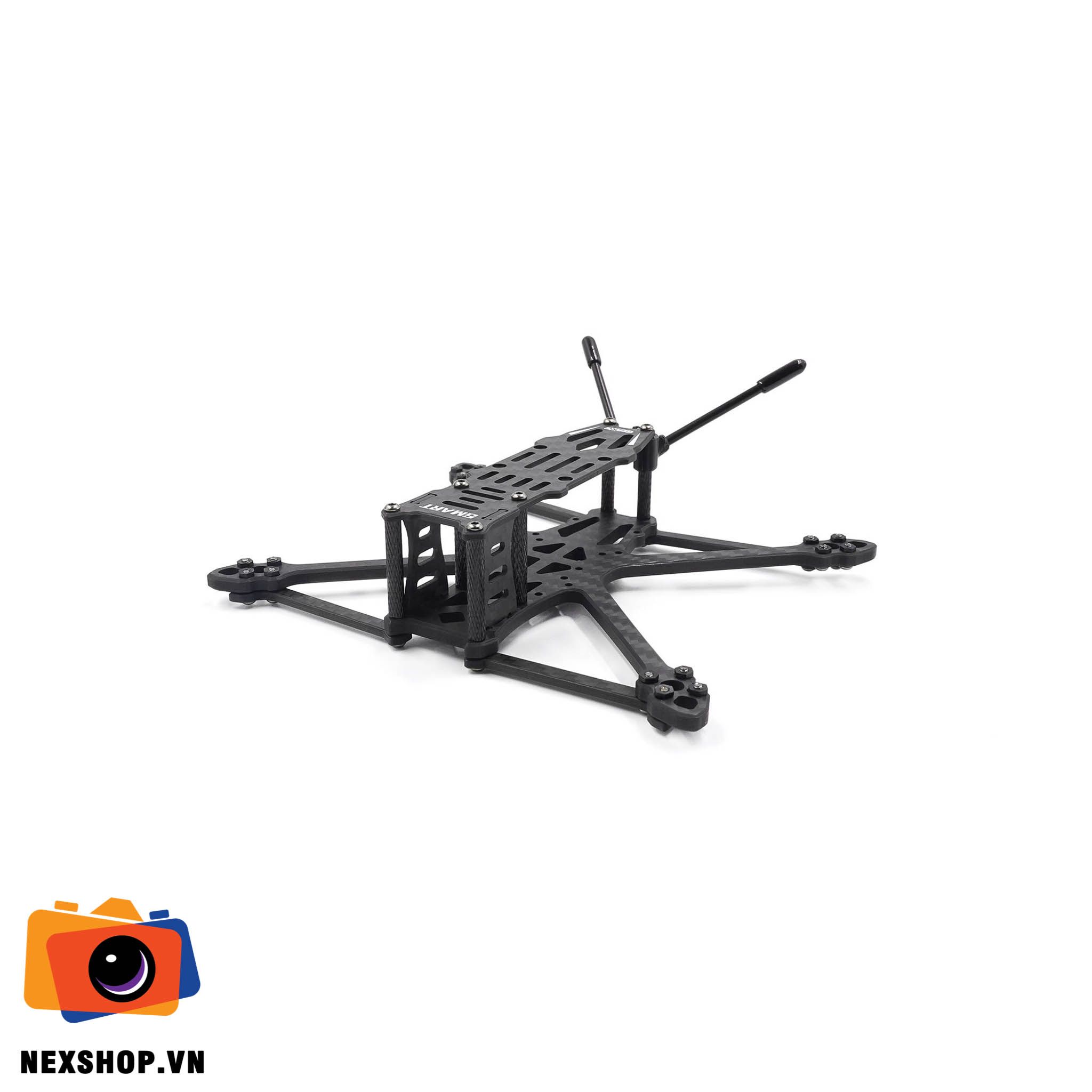

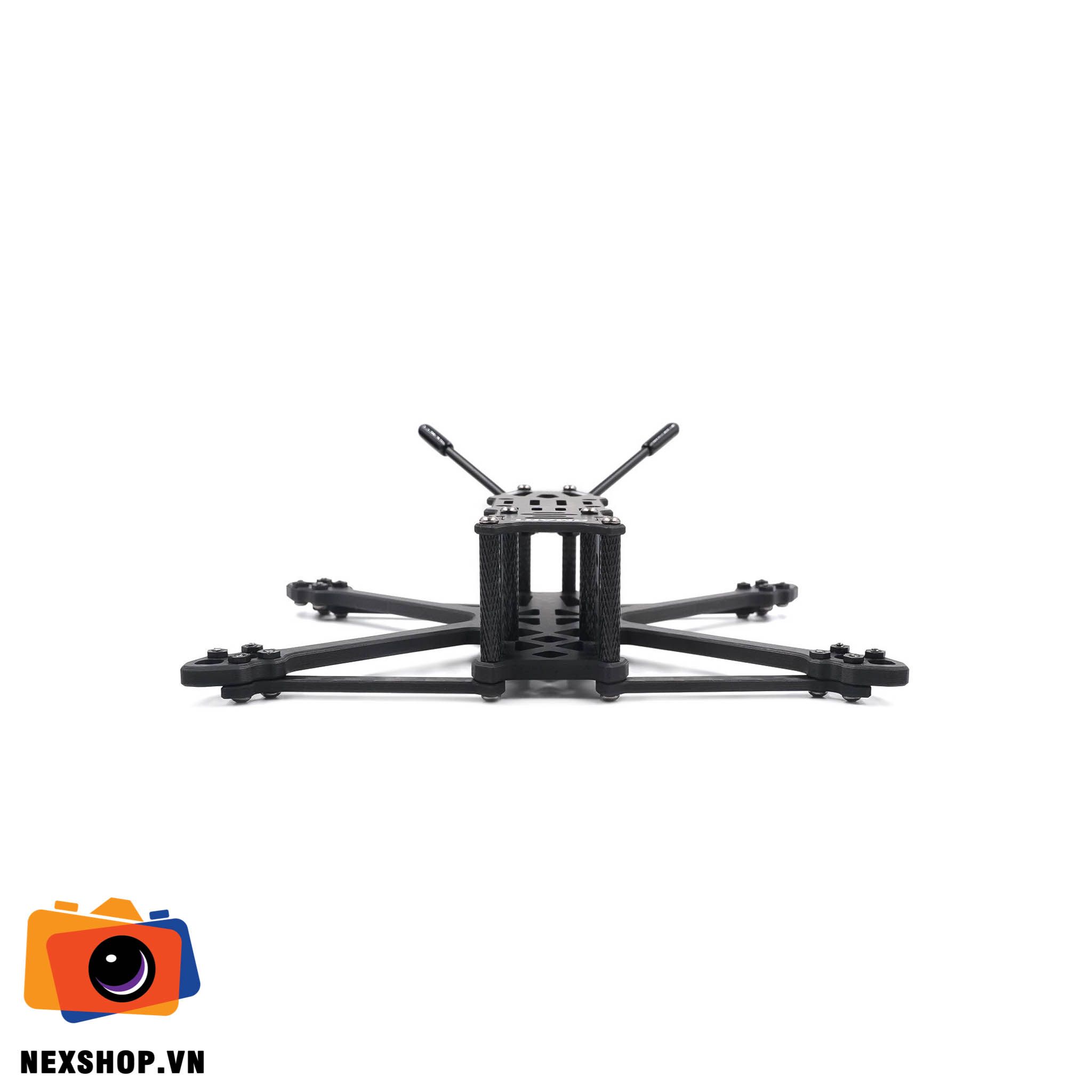

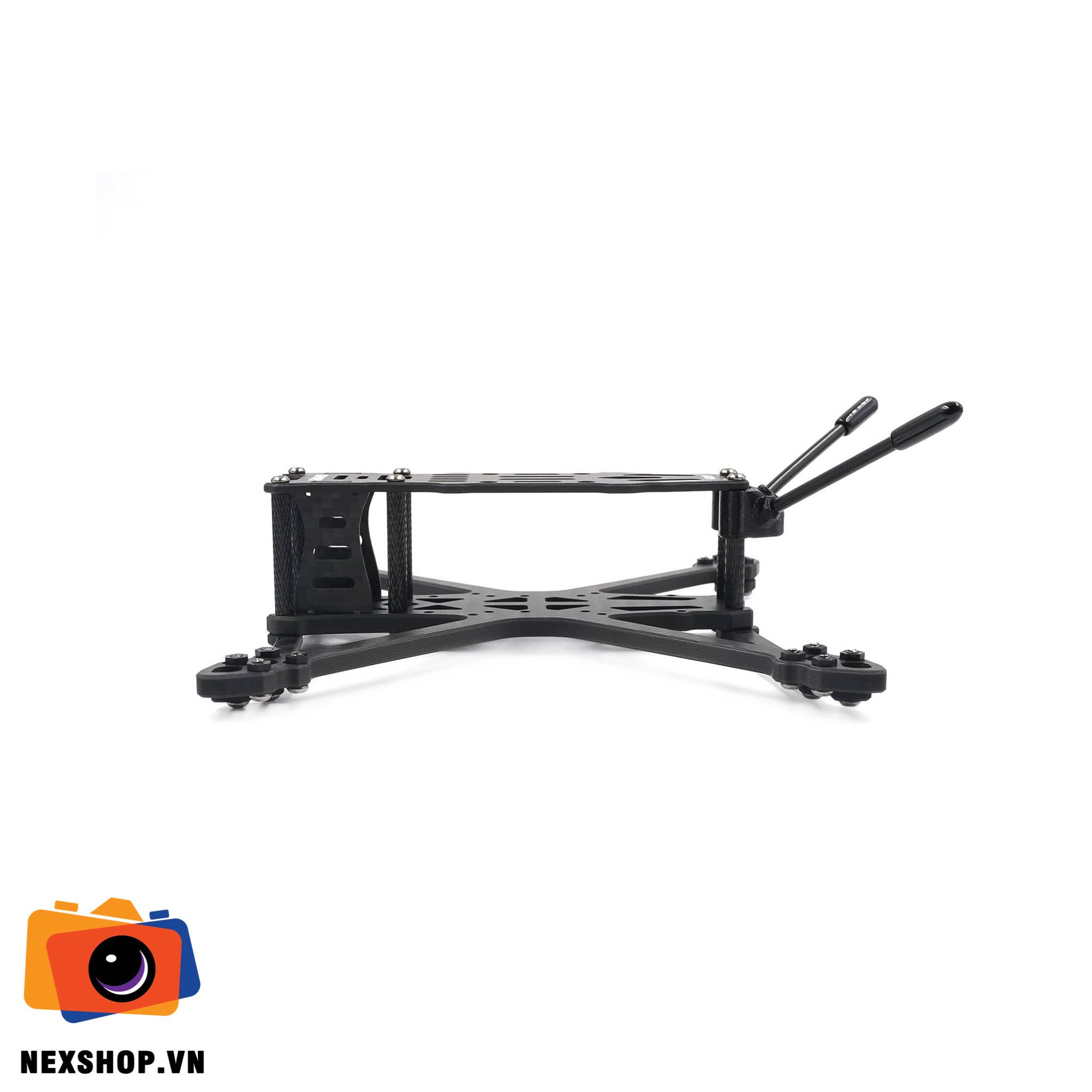

GepRC Smart 35 HD Frame

Summary:

Speicification:

• Brand name: GEPRC
• Model: GEP-ST35
• Wheelbase: 155mm
• Top Plate: 2.0mm
• Bottom Plate: 4.0mm
•  Arm Plate: 4.0mm
• Reinforced arm: 2.5mm
• FC mounting holes: 26.5mmx26.5mm/20mmx20mm
• VTX mounting holes: 20mmx20mm
• Motor mounting holes: 9mmx9mm/12mmx12mm
• Size: 142mmx118mmx36mm
• Weight: 47.9g (With 3D prints and reinforced Arm)

Features:

1. Small size, light weight, and good flight experience.
2. 4mm Arm can also be equipped with 2mm reinforced arm, ultra-high strength fuselage, the Strength rised to a higher level.
3. There are a number of installation holes for FC and VTX.
4. The motor with 8mm-13mm hole spacing can be installed.
5. The mount of GoPro camera is designed to install GoPro Hero 8 naked camera and Insta 360 Go2 camera.

• 1 x Top Plate
• 1 x Bottom Plate
• 2 x Camera mounting Plate
• 2 x Front reinforced Plate
• 2 x Ear reinforced Plate

• 6 x M2 * 4.0×25 aluminum columns
• 2 x M2 * 4mm cup head screws
• 20 x M2 * 6.5mm round head screws
• 8 x M2 * 7mm round head screws
• 18 x M2 * 9mm round head screws
• 4 x M2 * 12mm cup head screws
• 1 x M2 * 16mm cup head screws
• 4 x M2 * 18mm cup head screws
• 4 x M2 * 25mm cup head screws
• 4 x M2 * 4mm damping rings
• 8 x M2 * 6.5mm damping rings
• 2 x M2 Nylon shims
• 1 x M2 Rivet nuts
• 4 x M2 Nylon Nuts
• 4 x M2 Lock Nuts

3D Prints:

• 1 x VTX antenna mount
• 1 x TBS NanoRX antenna mount
• 1 x Naked camera mount

• 1 x Battery pad
• 1 x EVA landing pad
• 1 x Battery strap (M15 * 200mm)
• 1 x Screwdriver (1.5mm)
• 1 x Antenna fixing tubes
• 4 x Motor wire protection tubes (35mm)
