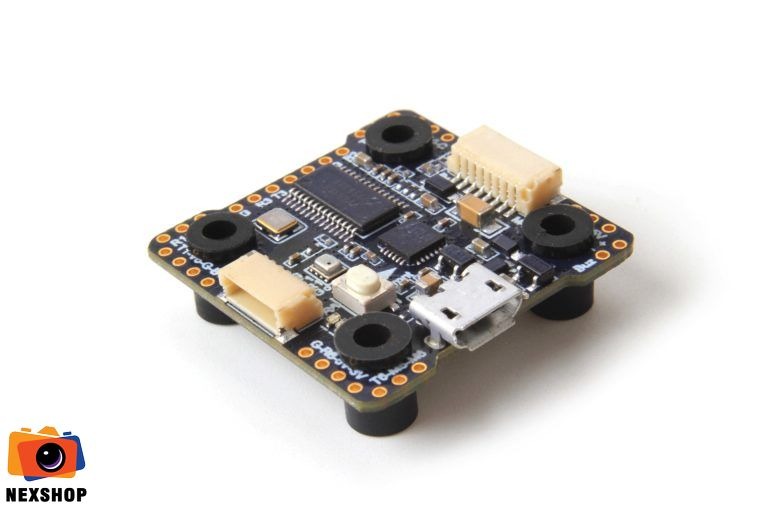

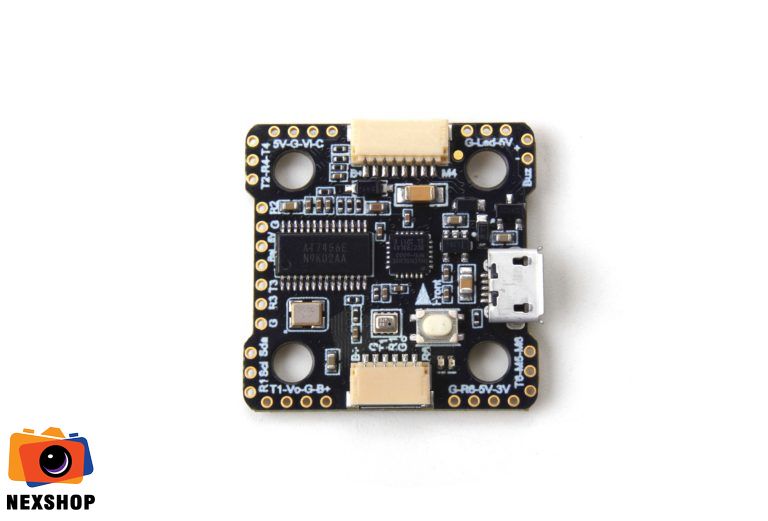

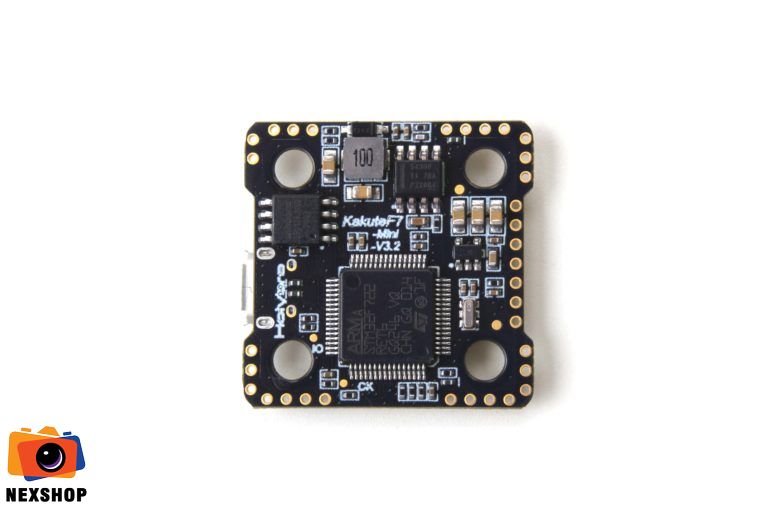

Holybro Kakute F7 mini V3
Giá bán: 1,050,000 VNĐ
Kakute F7 mini V3
Specifications:
-
MCU: STM32F722RET6 32-bit processor,216MHz, 256Kbytes RAM, 512Kbytes Flash
-
IMU: MPU6000 (SPI)
-
Barometer: BMP280
-
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
-
5hardware UARTS (UART1,2,3,4,6)
-
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
-
Onbord 16Mbytes for Blackbox logging
-
5V Power Out: 1.0A max
-
3.3V Power Out: 0.2A max
-

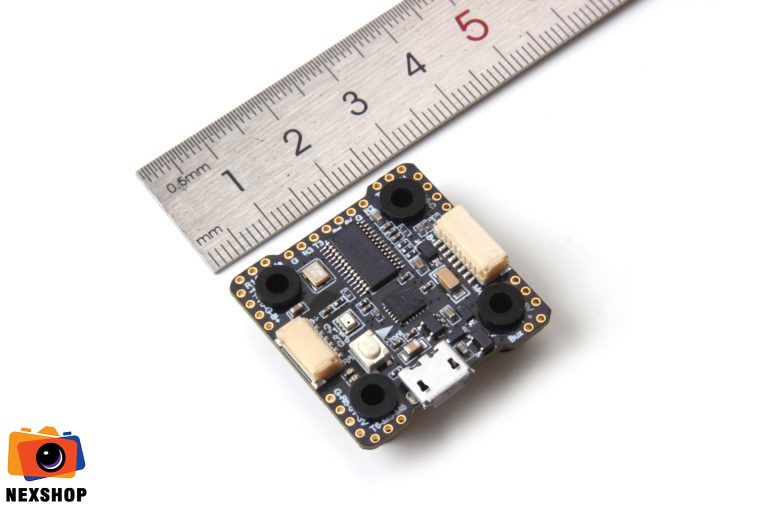

Dimensions: 30x30mm
-
Mounting Holes: Standard 20mm square to center of holes
-
Weight: 4g
Pinout Diagram:
Note: The DJI air unit works with a Lipo no bigger than 4S.
Package Includes:
FC board *1
M3 Anti-Vibration Silicone Grommet Insert *4
JST SH 8pin 150mm cable*1
JST SH 6pin 150mm cable*1 ( The cable that goes to the CADDX Vista Air Unit is included.)
JST SH 6pin to GH 8pin 150mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
JST SH 6pin to GH 8pin 80mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
