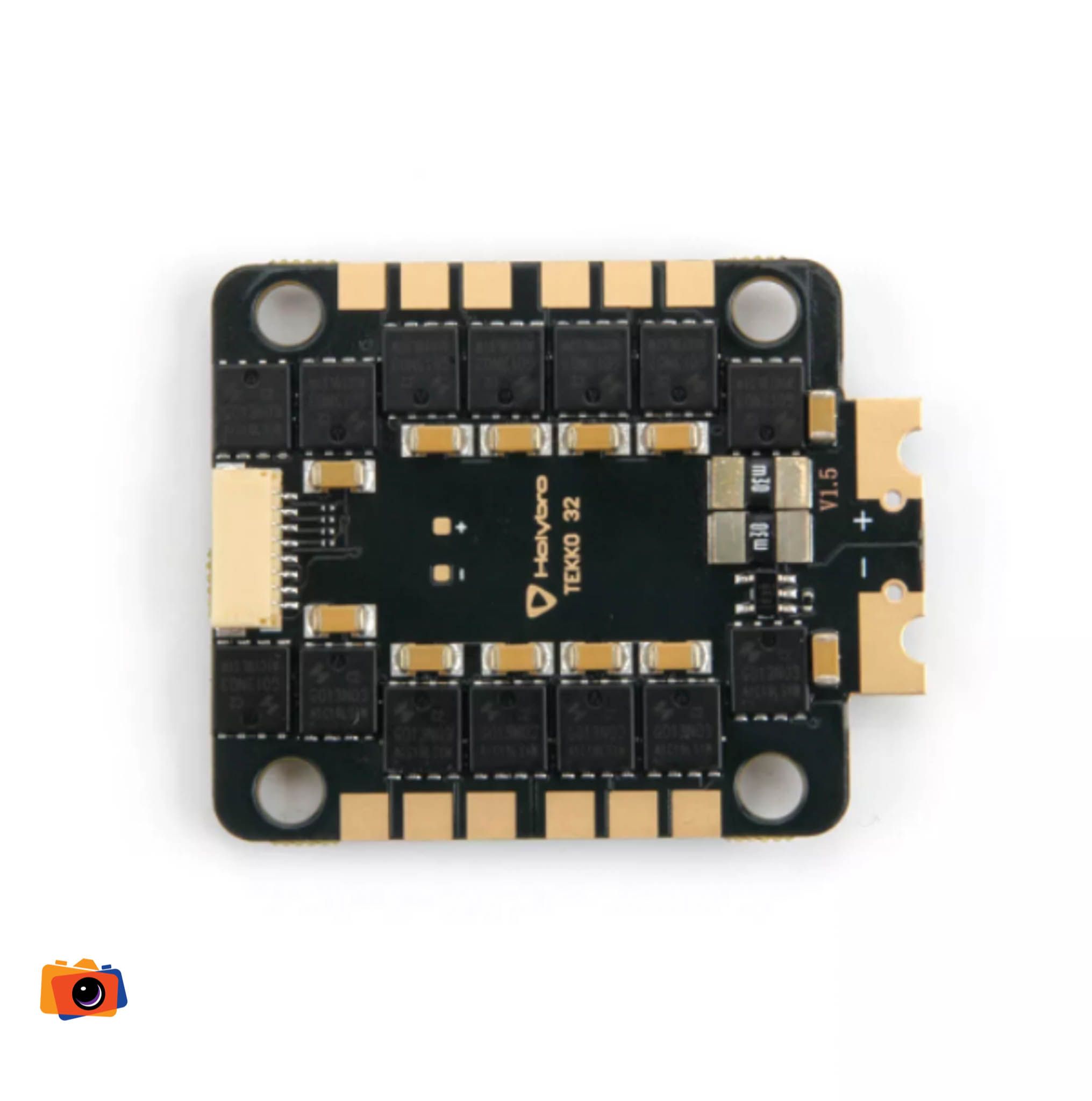

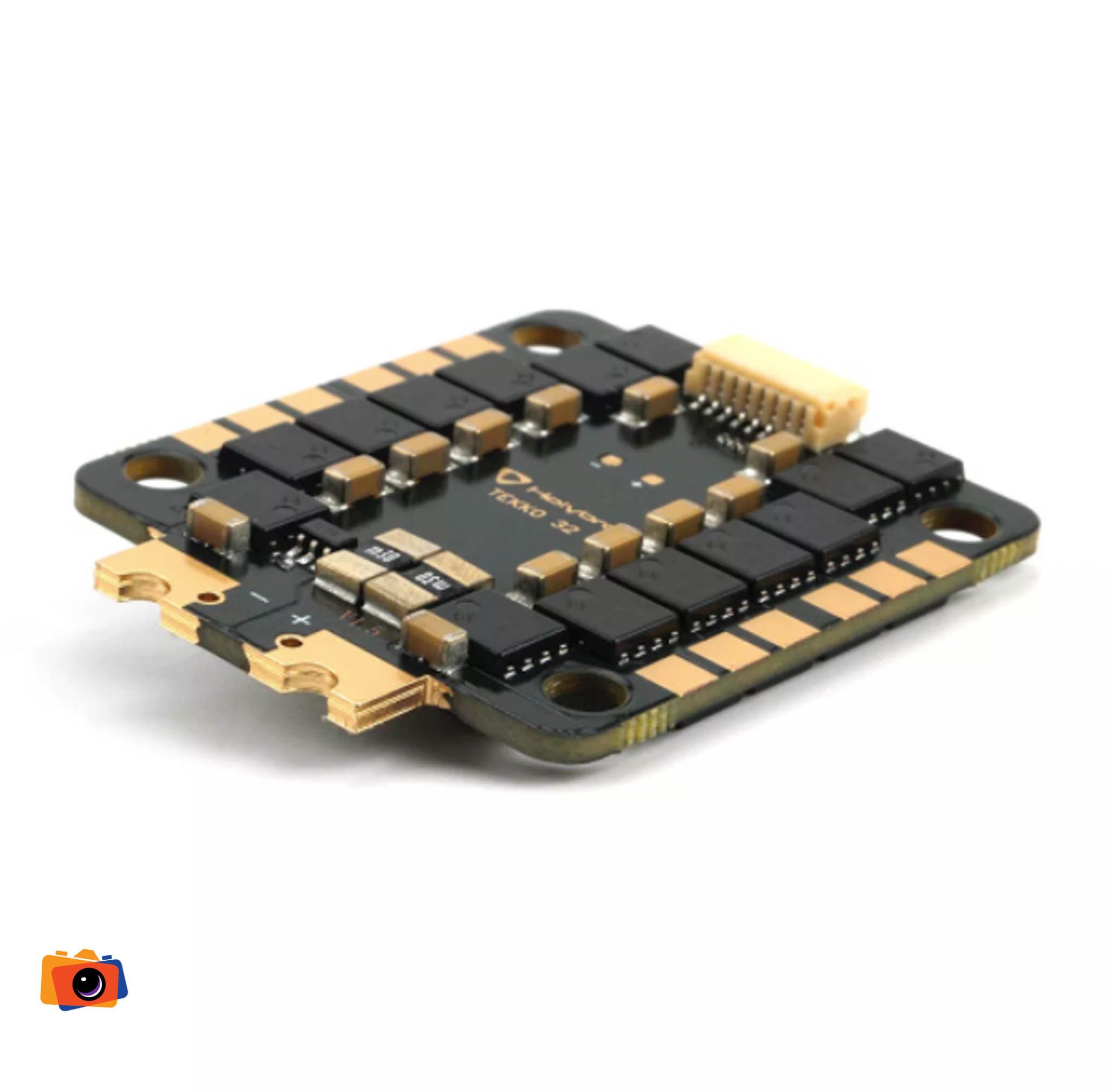

Holybro Tekko32 F4 4in1 50A ESC

Giá bán: 1,550,000 VNĐ

1,999,000 VNĐ
Trạng thái:
Mã sản phẩm : 31102
Bạn vui lòng chọn thuộc tính X

F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30x30
The all new Tekko32 is the first 4in1 ESC in market to adapt the fast F4 MCU @150Mhz, providing a smooth control operation and quick response.


Features:

  • New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
  • PWM Frequency: 16k to 96k

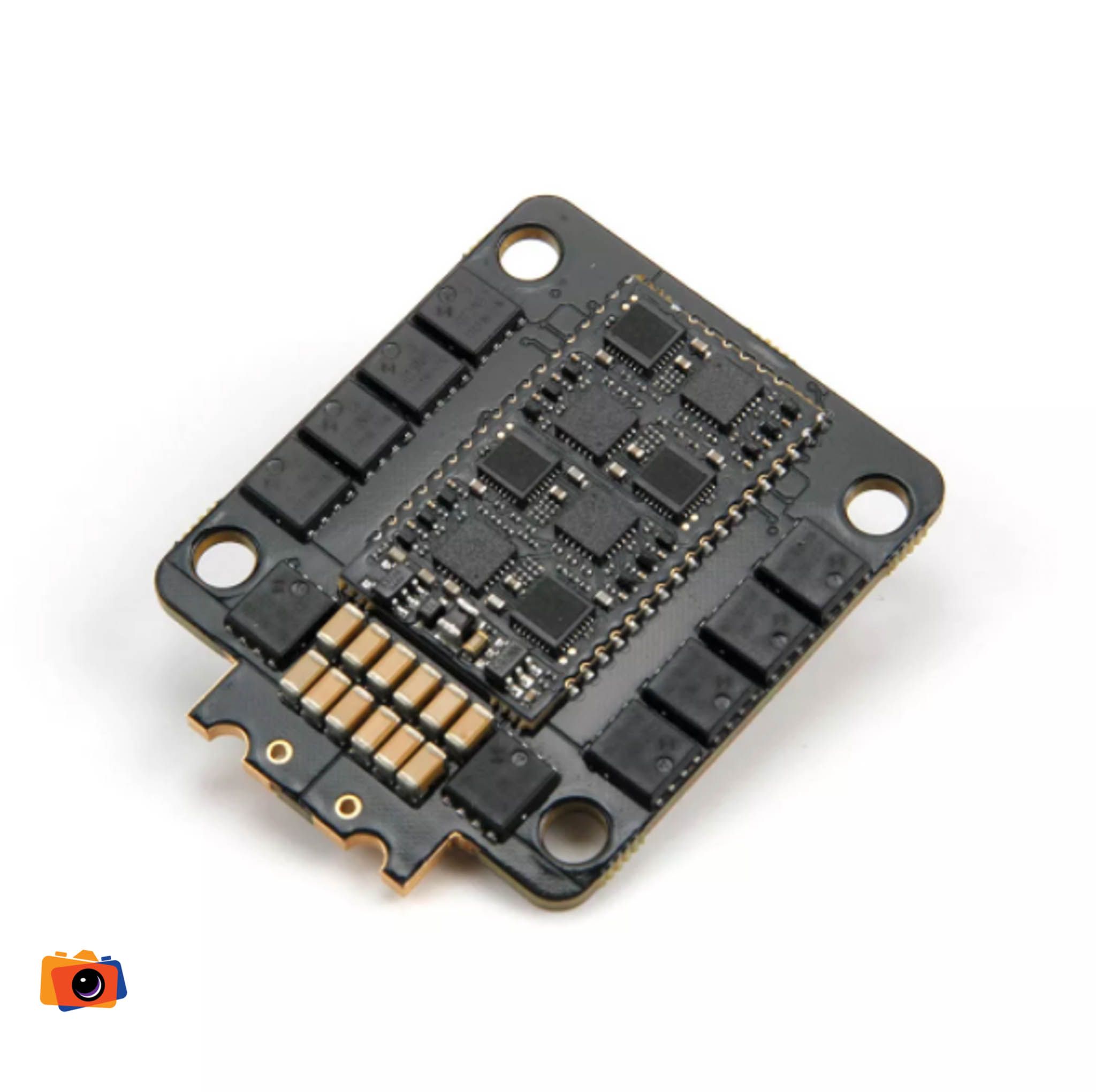

  • Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.


Specification:

  • Continuous Current: 50A x4
  • Burst Current: 60A x4
  • Supports 4-6S battery
  • Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
  • ESC telemetry Supported
  • Onboard analog current sensor
  • No output BEC
  • BLHeli_32 firmware
  • 1000uf 35v capacitor included (highly recommended for 6s setup)
  • Amperage meter scale ratio: 168
  • Dimensions: 45x37x6mm / Weight: 13.8g
  • Mounting holes: M4 30.5x30.5mm (M3 grommets included)

Pin MAP:

format,webp

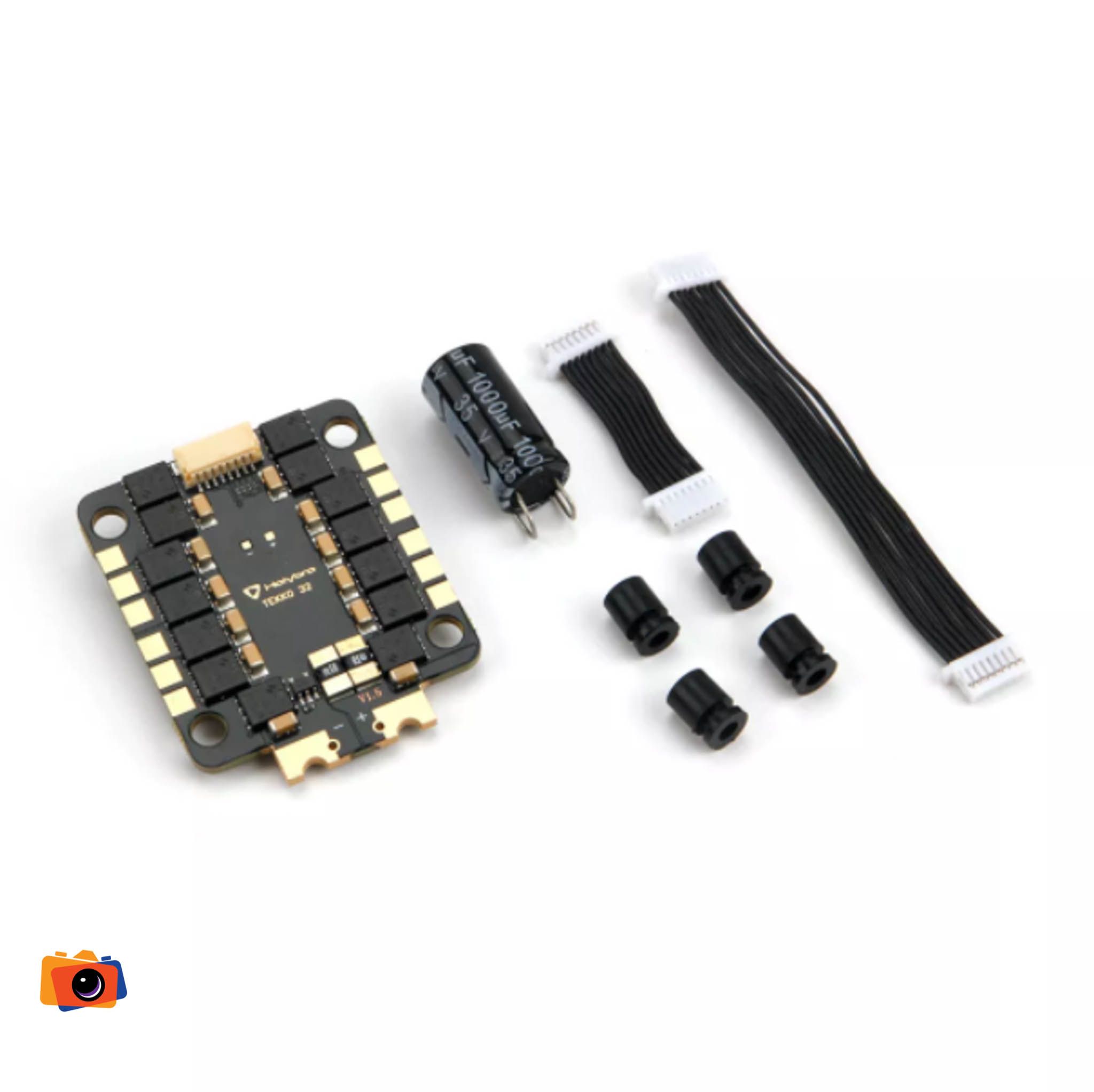

Package includes:

Tekko32 F4 4in1 50A ESC *1
M3 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacitor: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1

Downloads:

Tekko32 F4  4in1 50A ESC SPEC V1.5
