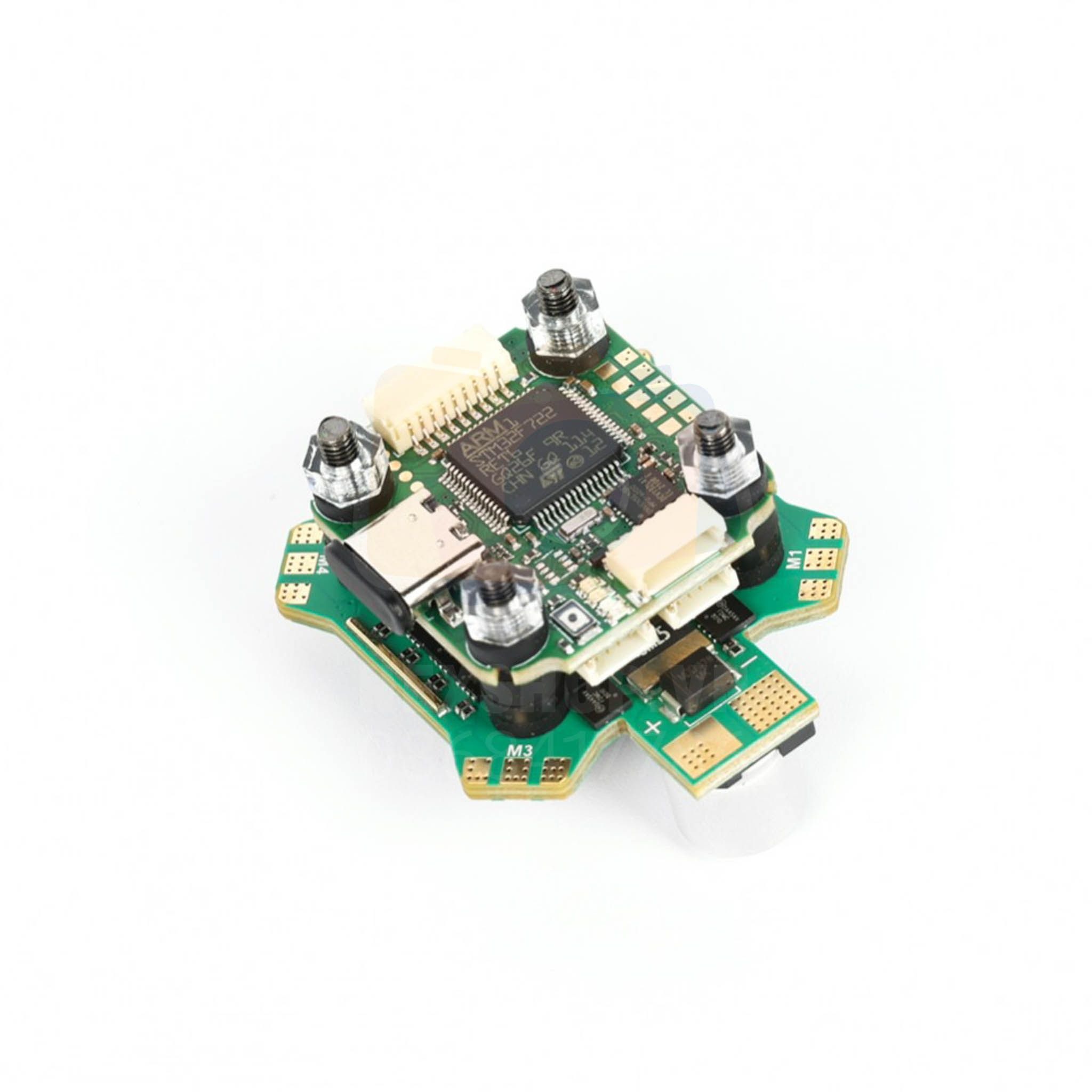

BLITZ Mini F7 E55 4-IN-1 Flight Tower System
Giá bán: 2,850,000 VNĐ
PRODUCT DESCRIPTION
-
Top Features:
- IMPROVED CIRCUIT DESIGN, BETTER COMPONENTS AND LOWER ELECTRICAL NOISE!
- DJI HD VTX CONNECTOR (PLUG-AND-PLAY / NO SOLDERING REQUIRED)
- FC INDICATOR LEDS FOR VISUAL DEBUGGING
Specs:
MCU: STM32 F722
GYRO: MPU6000
BAROMETER: NO
OSD CHIP: AT7456
FLASH: 16MB (BLACKBOX FLASH)
UARTS: 6
MOTOR OUTPUTS: 4X (SH1.0 CONNECTOR)
I2C SERIAL: SDA / SLA PADS
SMARTAUDIO / IRC TRAMP VTX PROTOCOL SUPPORTED
LED CONTROLLER: YES
BEEPER PAD: YES
FIRMWARE TARGET: IFRC-IFLIGHT_BLITZ_F722
MOUNT PATTERN: 20X20 MM / 4MM PCB HOLE DIAMETER, SILICON GROMMETS FOR M3 SCREWS
DIMENSIONS: 30.5X27 MM
WEIGHT: 5G
WIRING SUGGESTION:
- UART 1 FOR VTX HD / ANALOG
- UART 2 FOR A RECEIVER
- UART 3/4/5 FOR GPS OR OTHER SENSORS THAT REQUIRE A SERIAL PORT
- UART 6 FOR ESC TELEMETRY
TIPS
1. F722 MCU HAS AN INNER INVERTER.
2. SBUS, CRSF, ELRS, IBUS, DSM ETC... CAN BE CONNECTED TO ANY UNUSED UART_RX, WE SUGGEST YOU CONNECT TO UART_RX2
3. FRSKY SMARTPORT, TRAMP & SMARTAUDIO CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX1
4. F.PORT CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX2
ESC // BLITZ Mini E55 4-IN-1 2-6S ESC
-
SPECIFICATION:
- DIMENSION: 35*42MM
- MOUNTING HOLES: 20*20MM/Φ4MM
- WEIGHT: 11.3G
- SUPPORTS 2-6S LIPO INPUT
- MCU： G071
- CONSTANT: 55 AMPS
- BURST: 60 AMPS
- CURRENT SENSOR: YES
- BEC: NO
- CURRENT RATE: 100
- SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.
- FIRMWARE: BLHELI 32
- TARGET: IFLIGHT_BLITZ_G1
Package included:
- 1pc x BLITZ Mini F7 Flight Controller
- 1pc x BLITZ Mini E55 4-IN-1 2-6S ESC
- 1set x silicon grommets
- 1set x wire harness for F7 Flight controller
