Mateksys ELRS 2.4G receiver ELRS-R24-D

Giá bán: 425,000 VNĐ

Trạng thái:
Mã sản phẩm : ELRS-R24-D
Bạn vui lòng chọn thuộc tính X

ELRS-R24-D Specifications

  • ESP8285, SX1280/1281IMLTRT
  • PA/LNA: SE2431L
  • Antenna connector: IPEX MHF 1
  • RF Frequency: 2.4GHz (2400~2480MHz)
  • Telemetry power: 22.5dbm~23dbm
  • SE2431L RX_gain: 12.5dB
  • Diversity (antenna-switching), default ANT2
  • Receiver protocol: CRSF
  • Input voltage: 4~9V DC @ 5V pad
  • Power dissipation:  40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)
  • PCB size: 21mm x 15mm
  • Weight: 3g w/ 2x antennas

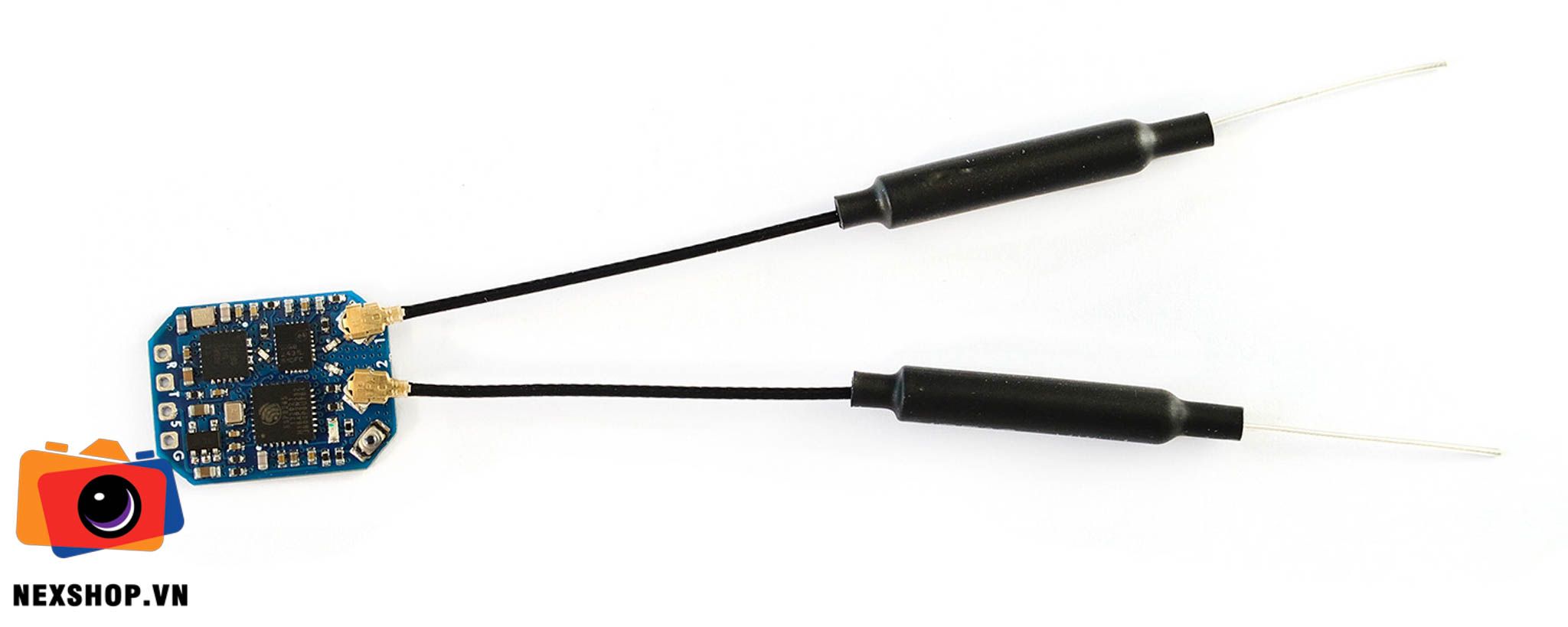

  • Packing: 1x ELRS-R24-D,   2x IPEX MHF1 Antennas

Firmwares

  • ExpressLRS 1.x & 2.x,  MATEK 2400 RX  enable “USE_DIVERSITY
  • ExpressLRS 3.x or newer,  MATEK 2400 RX R24D
  • Firmware update via UART or WIFI

ELRS-R24-D Specifications

  • ESP8285, SX1280/1281IMLTRT
  • PA/LNA: SE2431L
  • Antenna connector: IPEX MHF 1
  • RF Frequency: 2.4GHz (2400~2480MHz)
  • Telemetry power: 22.5dbm~23dbm
  • SE2431L RX_gain: 12.5dB
  • Diversity (antenna-switching), default ANT2
  • Receiver protocol: CRSF
  • Input voltage: 4~9V DC @ 5V pad
  • Power dissipation:  40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)
  • PCB size: 21mm x 15mm
  • Weight: 3g w/ 2x antennas
  • Packing: 1x ELRS-R24-D,   2x IPEX MHF1 Antennas

Firmwares

  • ExpressLRS 1.x & 2.x,  MATEK 2400 RX  enable “USE_DIVERSITY
  • ExpressLRS 3.x or newer,  MATEK 2400 RX R24D
  • Firmware update via UART or WIFI
