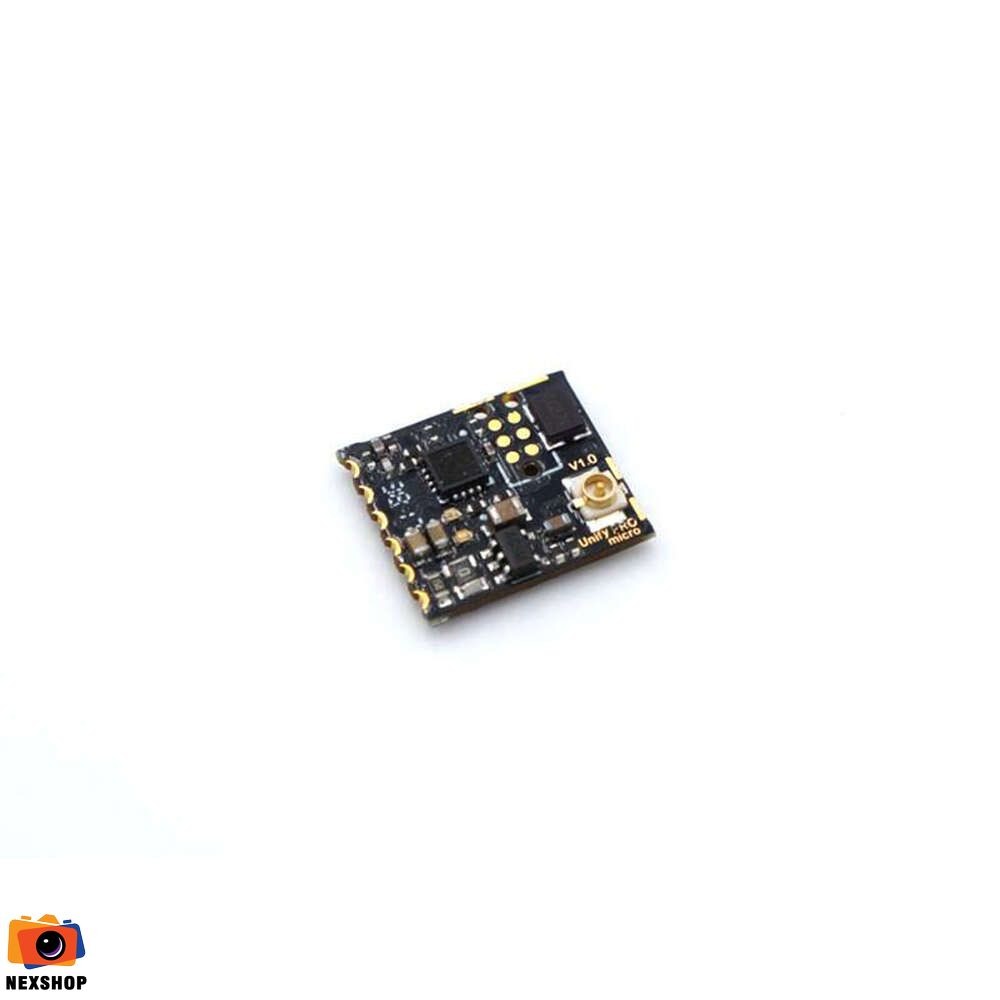

TBS UNIFY PRO NANO 5G8

SIZE MATTERS!

As builds become smaller and the innovation surrounding brushed and brushless micro quads accelerates, the need for a high-quality VTx increases. TBS has built the smallest VTx possible, focusing purely on size! Sporting the usual Unify Pro pedigree, a newly-revised u.FL connector and the industry-standard Smart Audio support. You will be blown away with the performance in terms of range, signal clarity and signal spacing.

SPECIFICATIONS

• Input Voltage: 4.5V - 5V ONLY

• Power levels: 25mW / 50mW

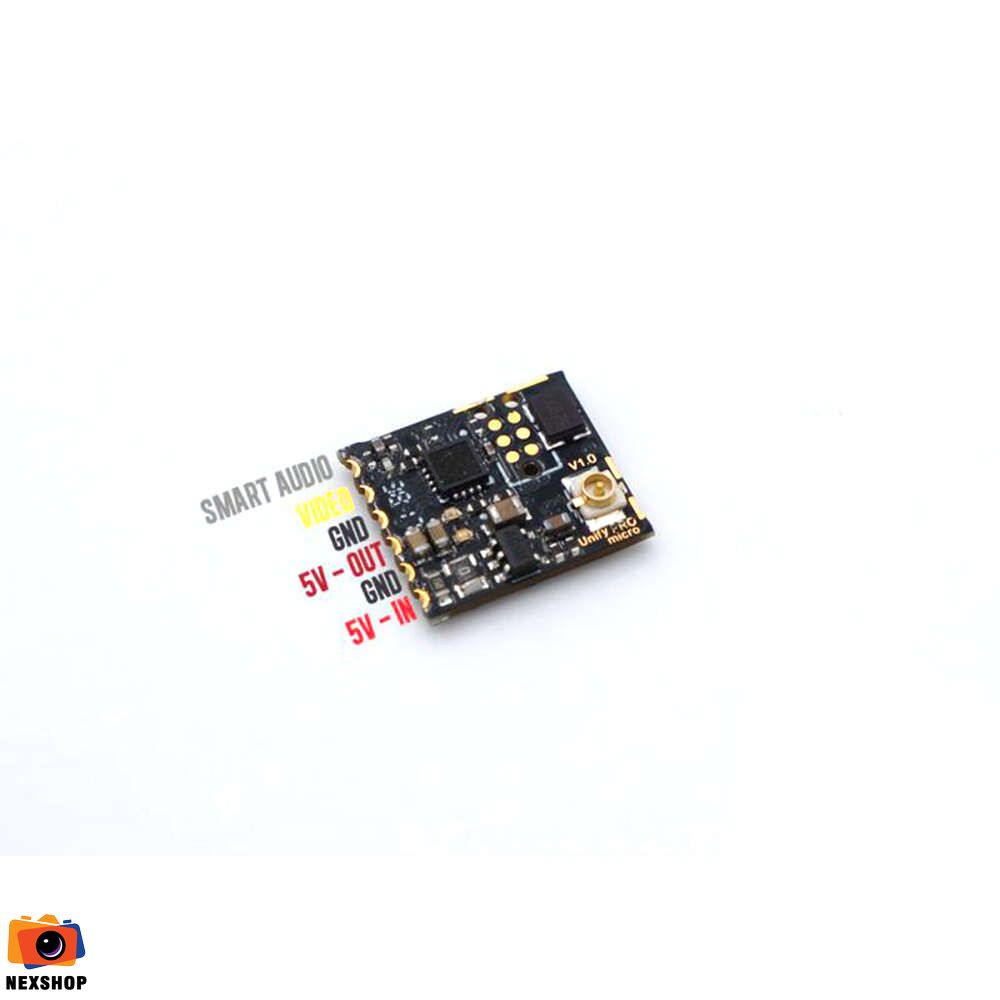

• Interface: SmartAudio and capacitive button (or solder external tactile button separately - included!)

• Weight: 1.4g (incl. antenna)

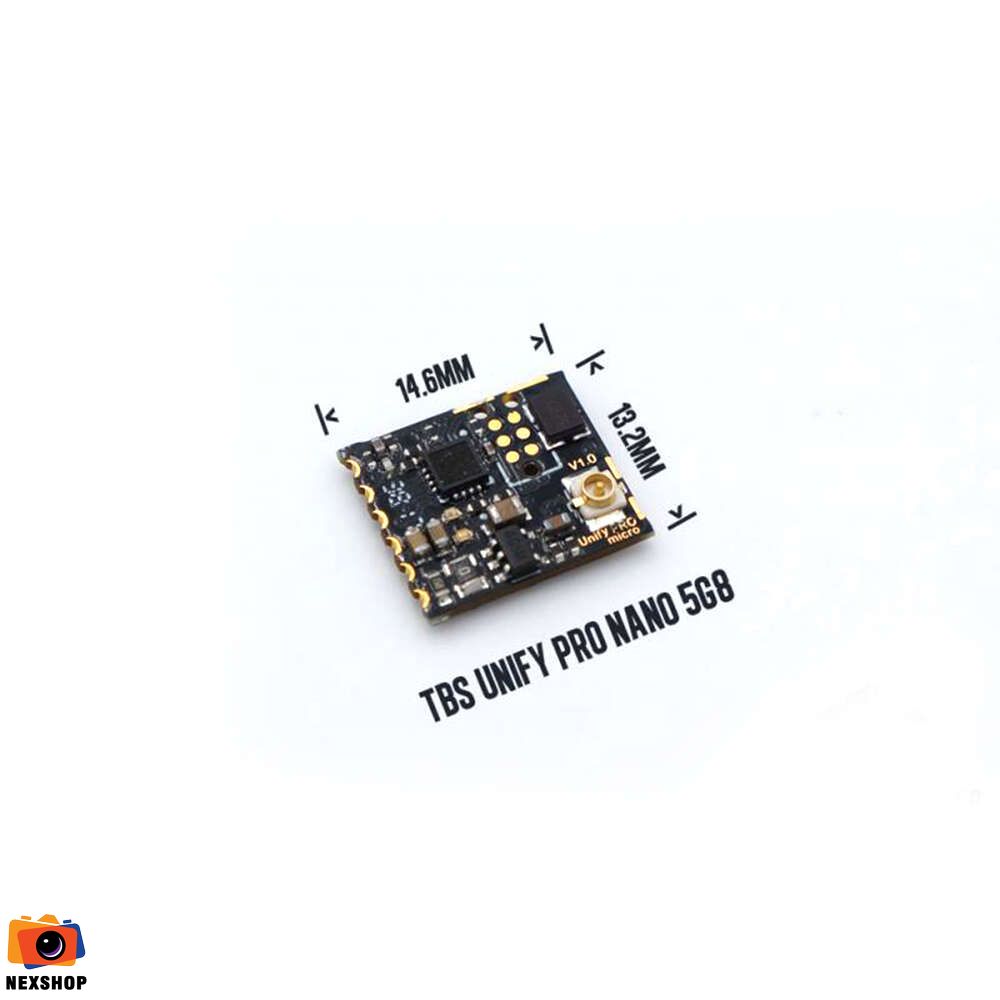

• Size: 13.2mm x 14.6mm

• Antenna connector: u.FL (upgraded)

• Antenna length: 45.6mm (end to end)

• TBS Tech: Smart Audio, Clean Switch

INCLUDES

• 1x Unify Pro nano 5G8 VTX

• 1x button switch

• 1x TBS UNIFY PRO 5G8 Linear Antenna

• 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
