Thingking P16 HD - DJI -TBS Nano

GEPRC Thinking P16 HD DJI FPV Tiny Whoop CrossfireProduct description

GEPRC Thinking P16 HD DJI FPV Tiny Whoop Crossfire

With the intention of building a durable, lightweight brushless HD hoop, GEPRC finally launched the Thinking P16 HD. It is the latest Whoop-Style Quad from GEPRC, which has a digital Caddx Vista Nebula FPV system built in that delivers HD image transmission directly to your DJI FPV glasses. With just the size of your hand and the transmission of HD footage, the Thinking P16 HD takes the pleasure of flying a Whoop-Style Quad to a whole new level.

The GR1103 8000kv engines and 1.6'' propeller combined with a 3S 300mah lipo battery give the Thinking P16 HD a stable but responsive flight characteristic. This highly efficient setup gives you 4 minutes of indoor acrobatics.

Just like all other GEPRC quads, the Thinking P16 HD was pre-tuned and fully assembled by the GEPRC team before you receive it! Just plug it into your transmitter or connect your favourite receiver and you're ready to enjoy your brand new Thinking P16 HD.

Technical data

• FC: GEP-12A-F4 AIO

• Camera: Caddx Vista Nebula

• Motor to motor: 79mm

• Propeller: Gemfan 1635

• Antenna: 5.8G Linear Antenna

• Motor: GR1103 8000KV

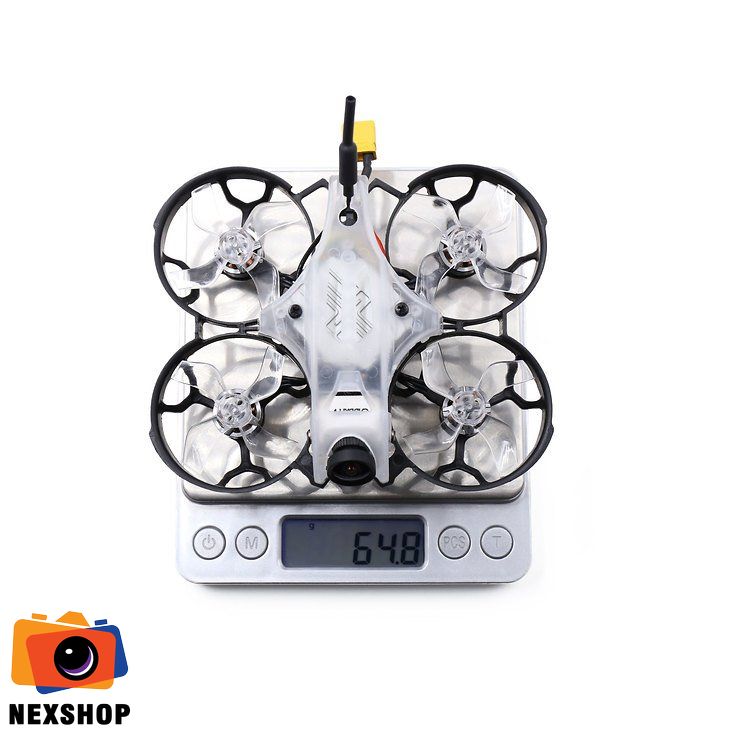

• Weight: 64g without LiPo

• Recommended propellers: 1.6" (or even 40mm)

• Recommended batteries: 3S 300mAh

• Receiver: TBS Crossfire

Technical data FC

• MCU: STM32F411

• Gyro: MPU6000

• OSD: BetaFlight OSD with AT7456E chip

• Firmware target: GEPRCF411

• ESC: 12A x 4 BLHeli_S (Dshot/Multishot/OneShot)

Content

• Thinking P16 HD CineWhoop (TBS Crossfire)

• 4x propeller GEMFAN 1636

• 2x LiPo rhinestone 15x120mm

• 1.5mm L Screwdriver

• 5.8G Antenna
